Description
SPECIFICATIONS
Audio Port: 1x 3.5mm jack, ALC897
Brand Name: XCY
COM Ports: 2x RS232 Serial Ports
Case Material: Aluminum Alloy
Certification: CE,FCC,RoHS

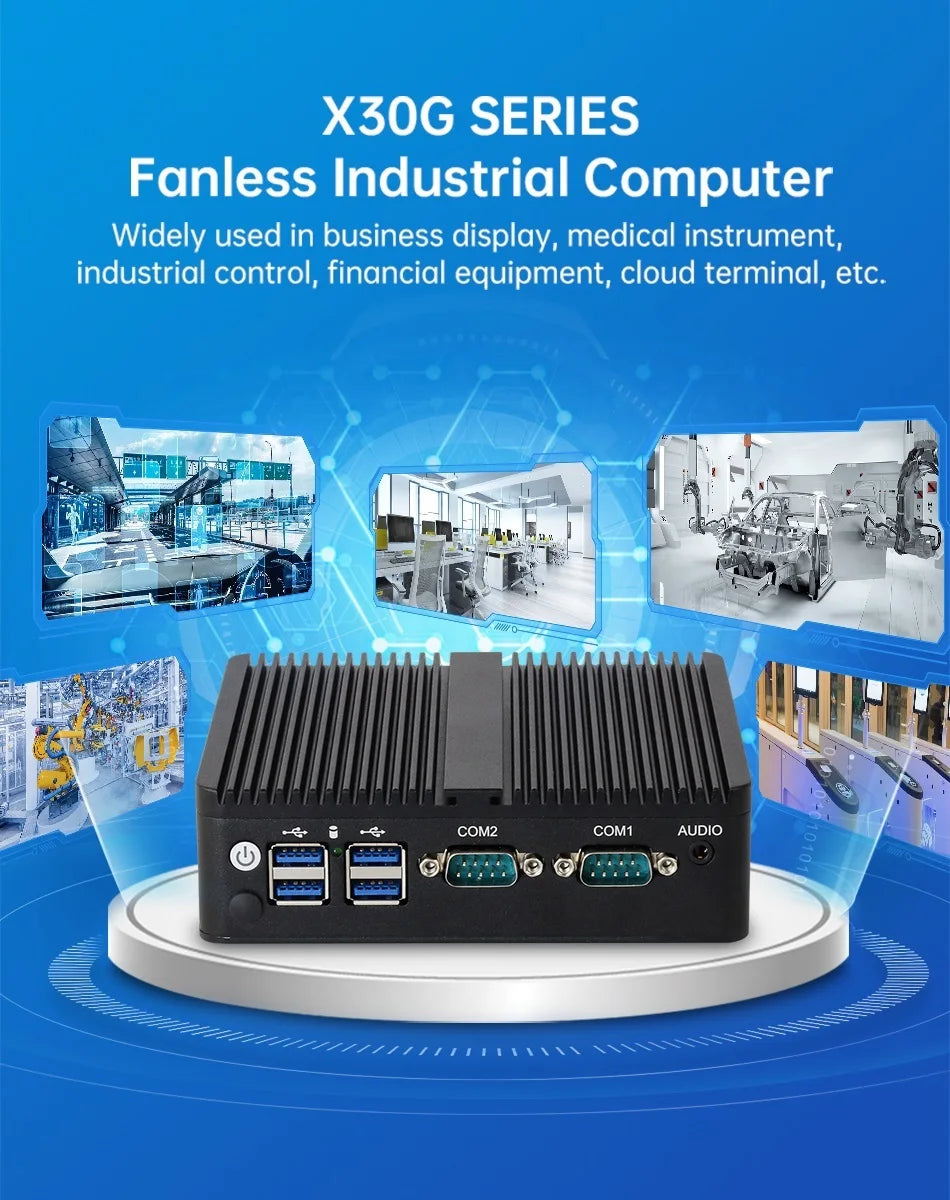

Construction: Fanless passive cooling
Dimension: 135x124x40mm
Graphics: Intel HD Graphics
Graphics Card Type: Integrated Card
Hard Drive Capacity: 120GB
Hard Drive Type: mSATA SSD
High-concerned chemical: None
LAN Ports: 2x Realtek 8111H Gigabit Ethernet
Max Resolution: FHD 1920*1080P
Memory Capacity: ≥ 4GB
Memory Type: SODIMM DDR3L / DDR4
Model Number: X30G
OS Support: Windows 10, Windows 8.1, Windows 7, Linux, Ubuntu
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: Depends on CPU
Processor Model: Intel Celeron J4125, J6412, J2900, 3805U, N5105
Type: Mini Desktop,Mini PC

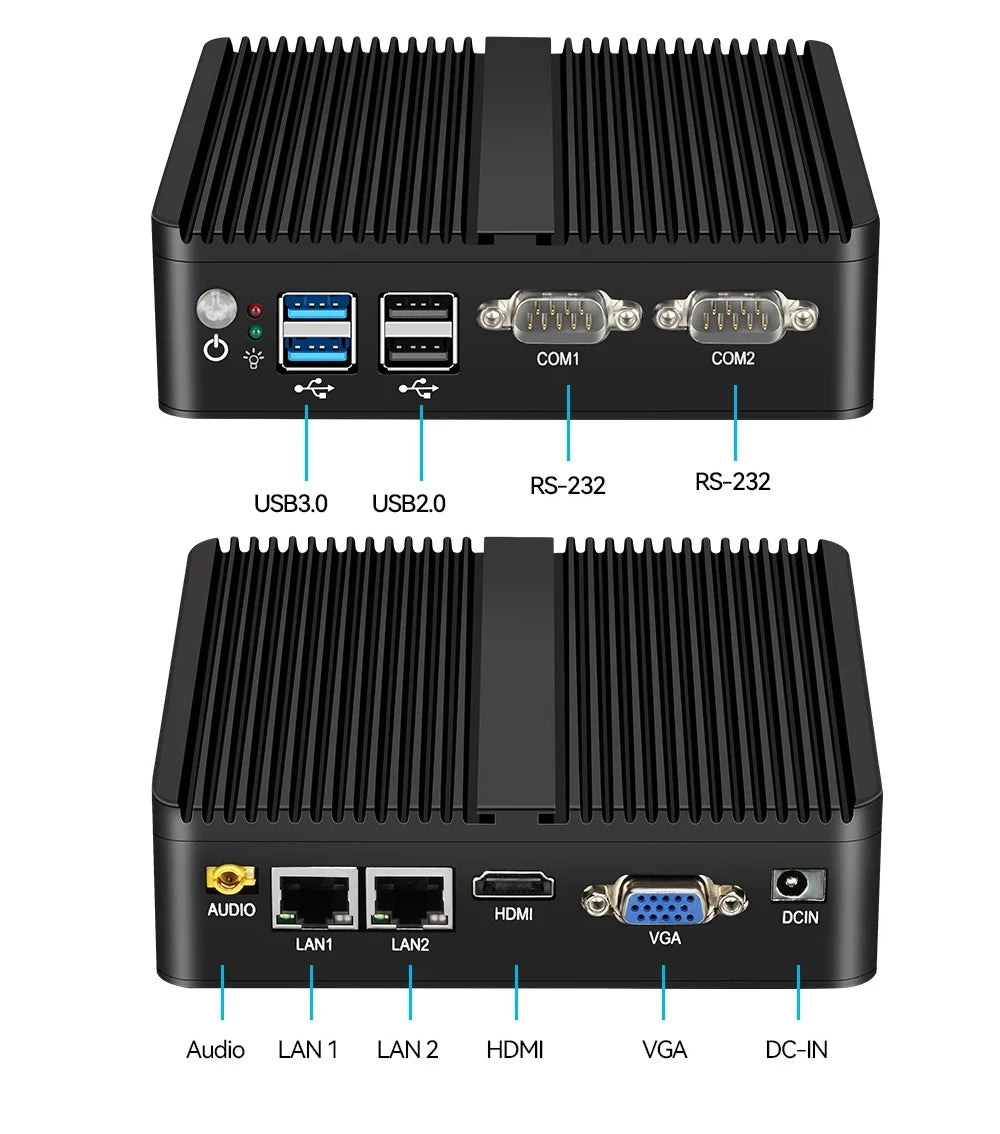

USB Ports: 4xUSB or 6x USB ports
Use: Multimedia
Video Output: 1x HDMI, 1x VGA
WiFi: 1x Mini PCIe slot for WiFi
Working Voltage: DC12V-3A/5A

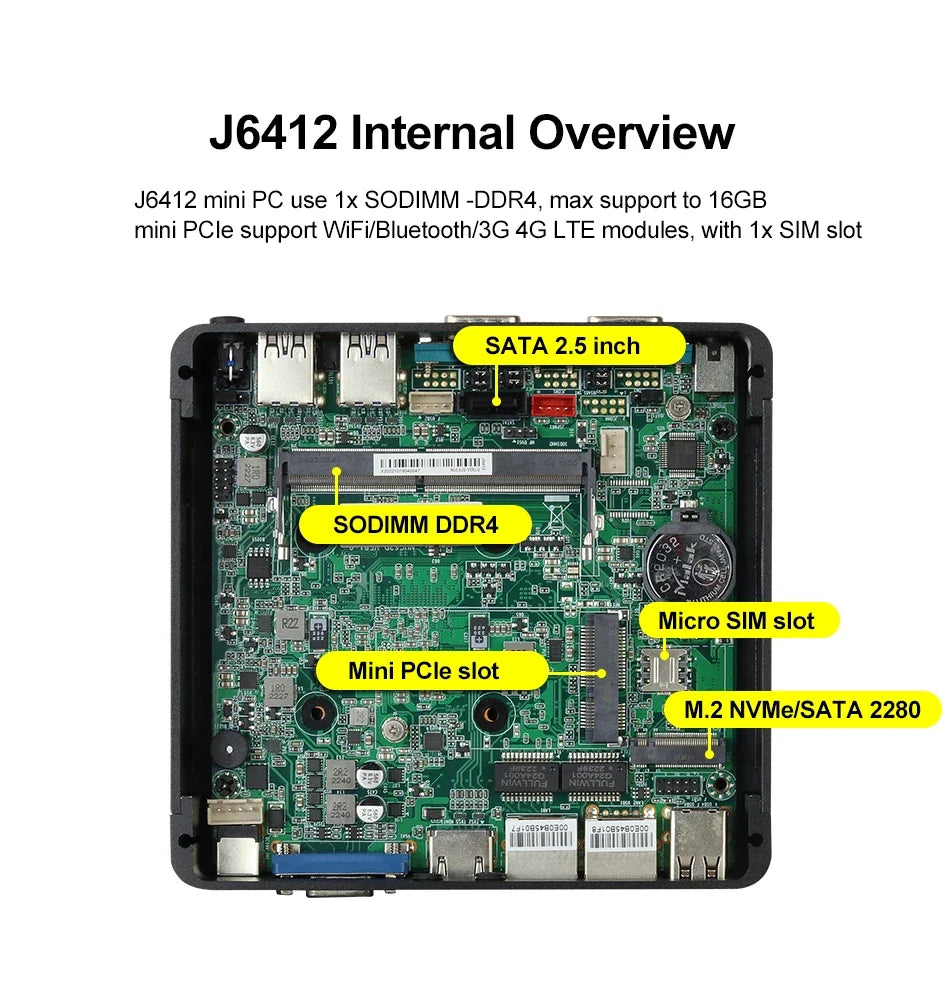

- Flexible RAM and storage, 1x memory slot, max support to 8GB; J6412 model supports one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD, other models support one mSATA SSD and one 2.5 inch SSD/HDD;

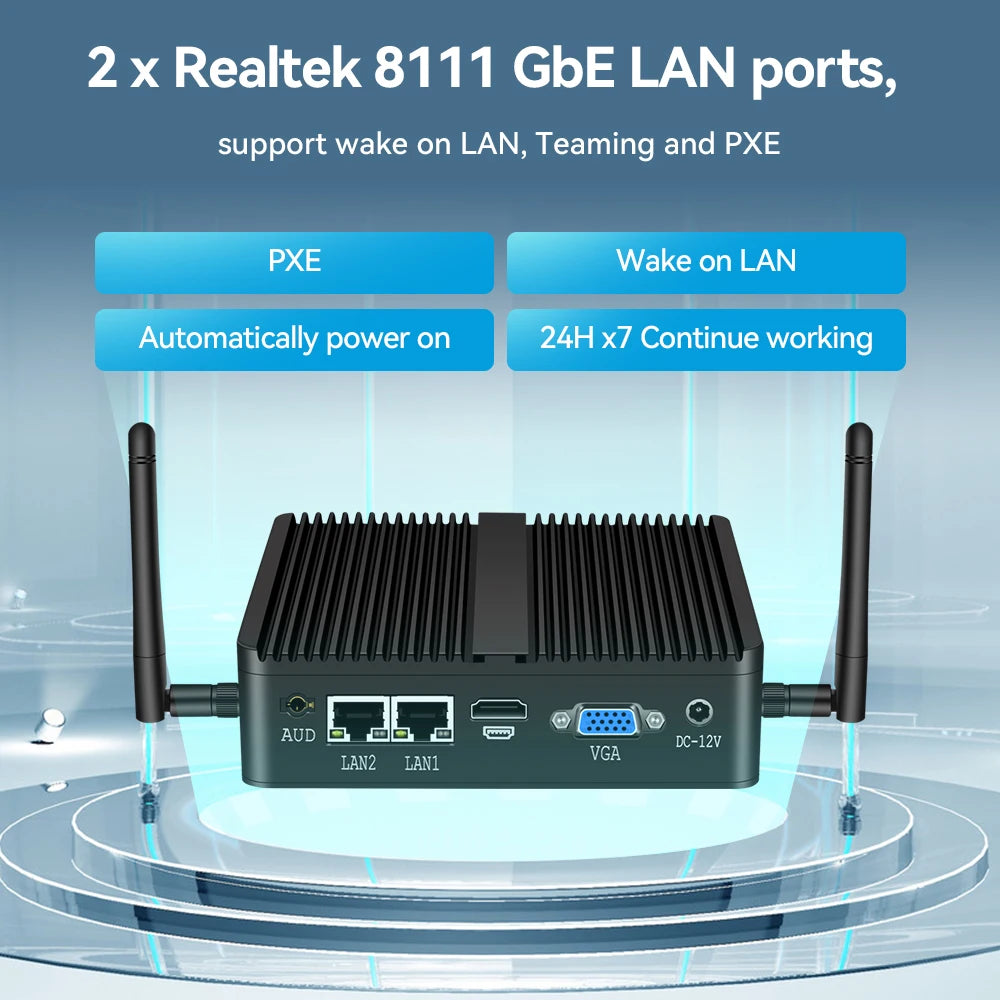

- 2x Realtek 8111H Gigabit Ethernet , support Wake on LAN, PXE boot.
- 2x COM serial ports, J6412/J2900/N2840 model two COM ports support adjust to RS485/RS232, other models two COM ports are RS232 mode.
- HDMI VGA support independent HD video output;
- Fanless aluminum metal case heat dissipation;
- 1x mini PCIE slot support expandsion of WiFi/4G LTE Modules;
- Support automatically power on after AC power restored;
Processors |
Intel Celeron J4125, 4 cores 4 threads, 4M Cahce, 2.0GHz, up to 2.70GHz Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz Intel Celeron N5105, 4 cores 4 threads, 4M Cache, 2.0GHz, up to 2.90GHz Intel Pentium J2900, 4 cores 4 threads, 2M Cache, 2.41GHz up to 2.66GHz Intel Celeron N2840，2 cores 2 threads, 1M Cache, 2.16GHz, up to 2.58GHz |
Memory Types |

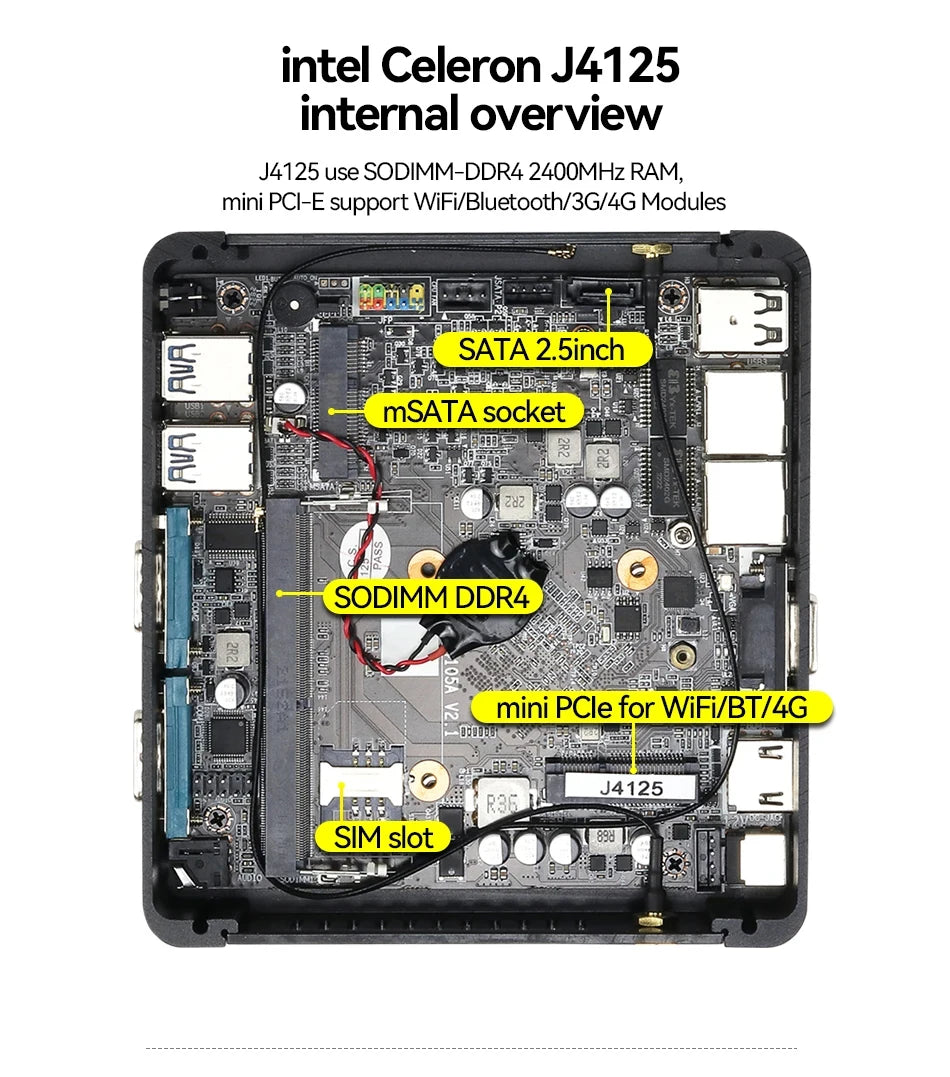

J4125 J6412 N5105 processors use 1x SODIMM DDR4 RAM, |
Hard Drive Types |
J6412 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD; N5105 use M.2 NVMe 2280 SSD, 1x 2.5 inch HDD/SSD; Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD |
Processor Graphics |
J4125/N5105: Intel UHD Graphics 600 J6412: Intel UHD Graphics for 10th Gen Processor 2955U/J2900/3805U/N2840: Intel HD Graphics i3-4005U: Intel HD Graphics 4400 i3-5005U: Intel HD Graphics 5500 |
Network Interfaces |
2x GbE RJ45 Realtek 8111H, Support Wake on LAN, PXE boot |
Expansion |
1x Mini PCI-E slot for WiFi/Bluetooth/3G/4G modules, J6412/J4125/J2900/N2840 motherboards with 1x SIM slot; |
OS Support |
J6412 support windows 11, windows 10, Linux/Ubuntu/CentOS J4125 N5105 support windows 10, Windows 8.1, Linux/Ubuntu/CentOS i3-4005U/i3-5005U Celeron 2955U/N2840 Pentium 3805U/J2900 support Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/Centos |
USB Ports |

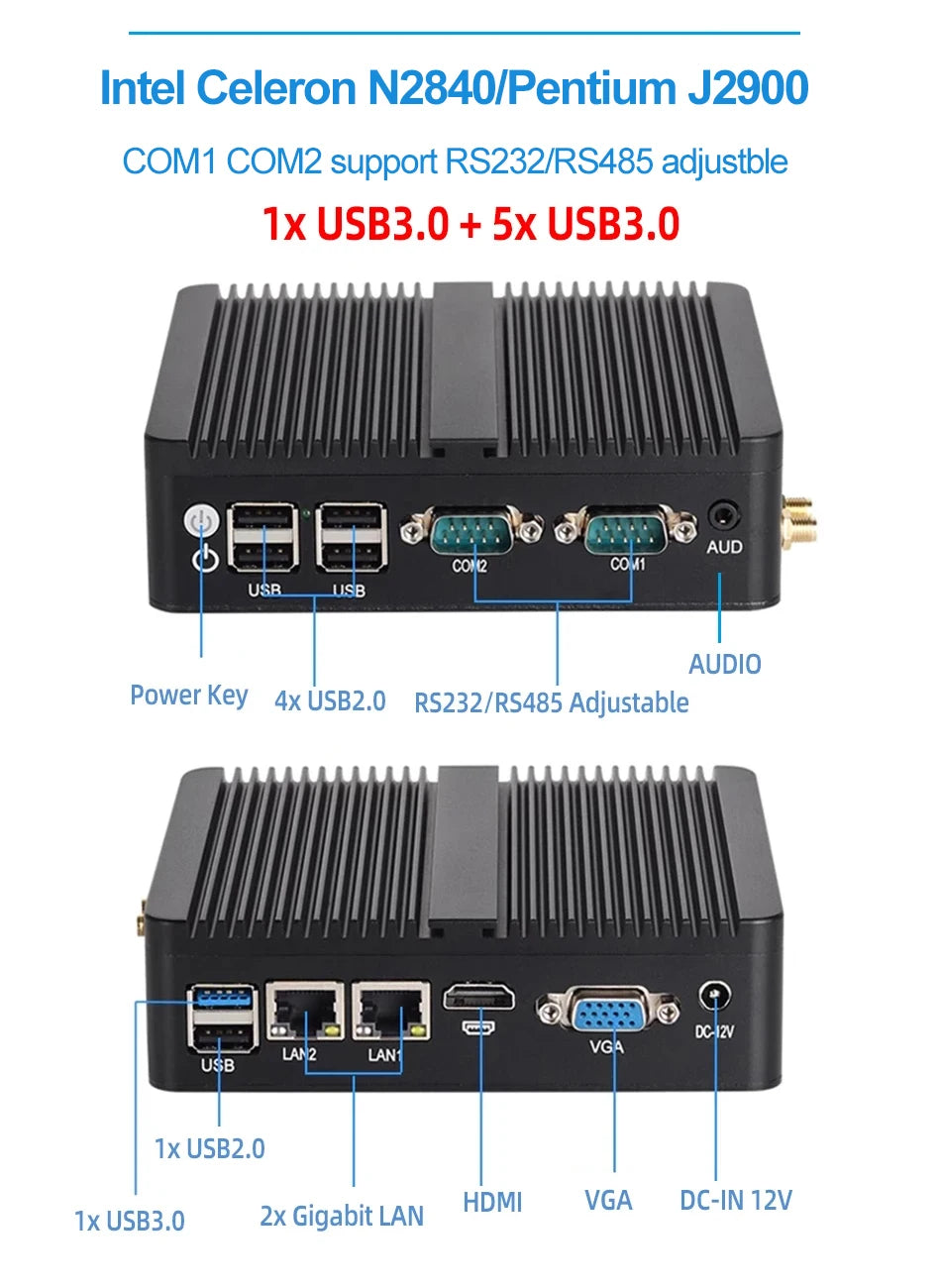

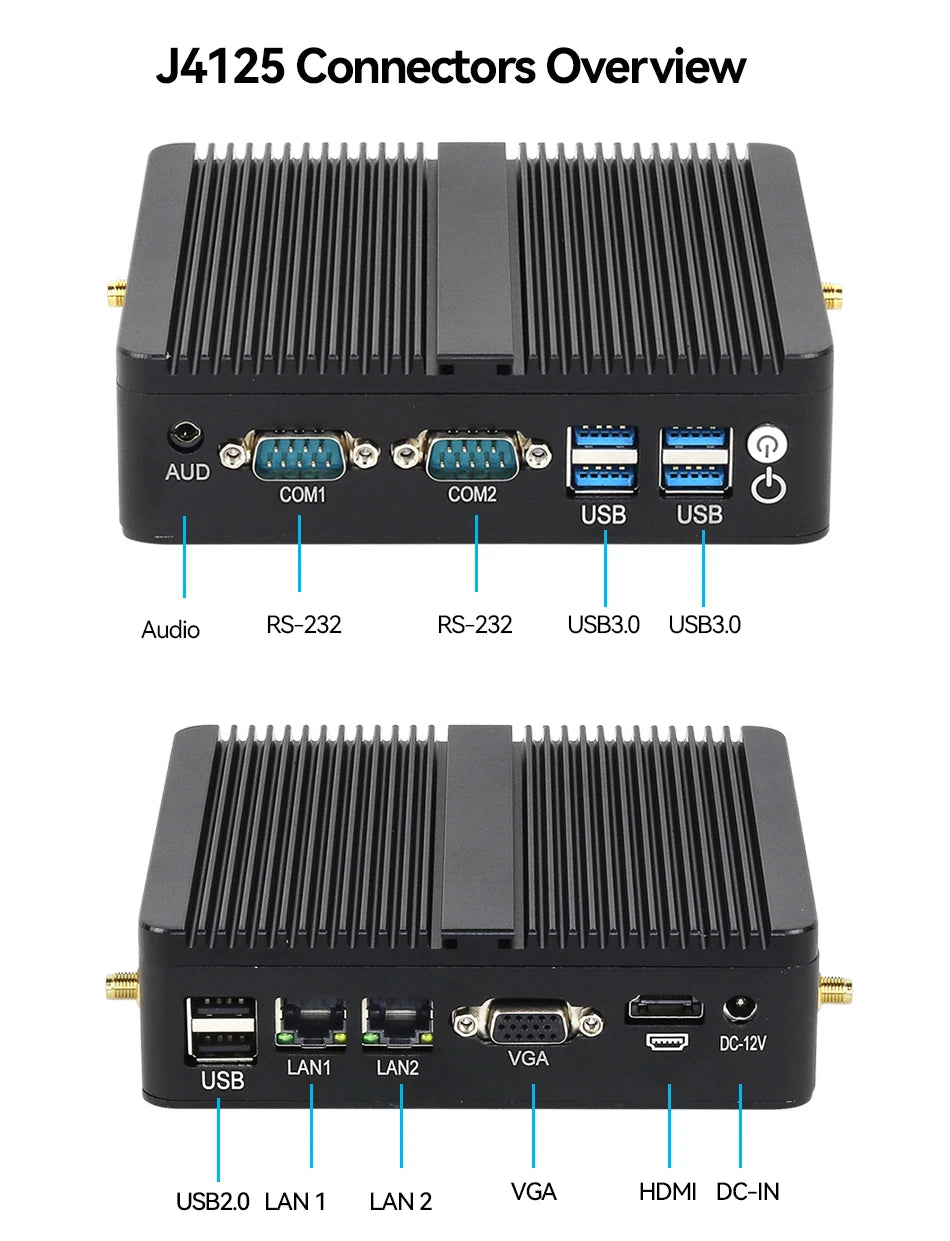

J4125 J6412: 4x USB3.0 + 2x USB2.0 J2900/N2840: 1x USB3.0 +5x USB2.0 N5105: 4x USB3.0 |
Display Port |

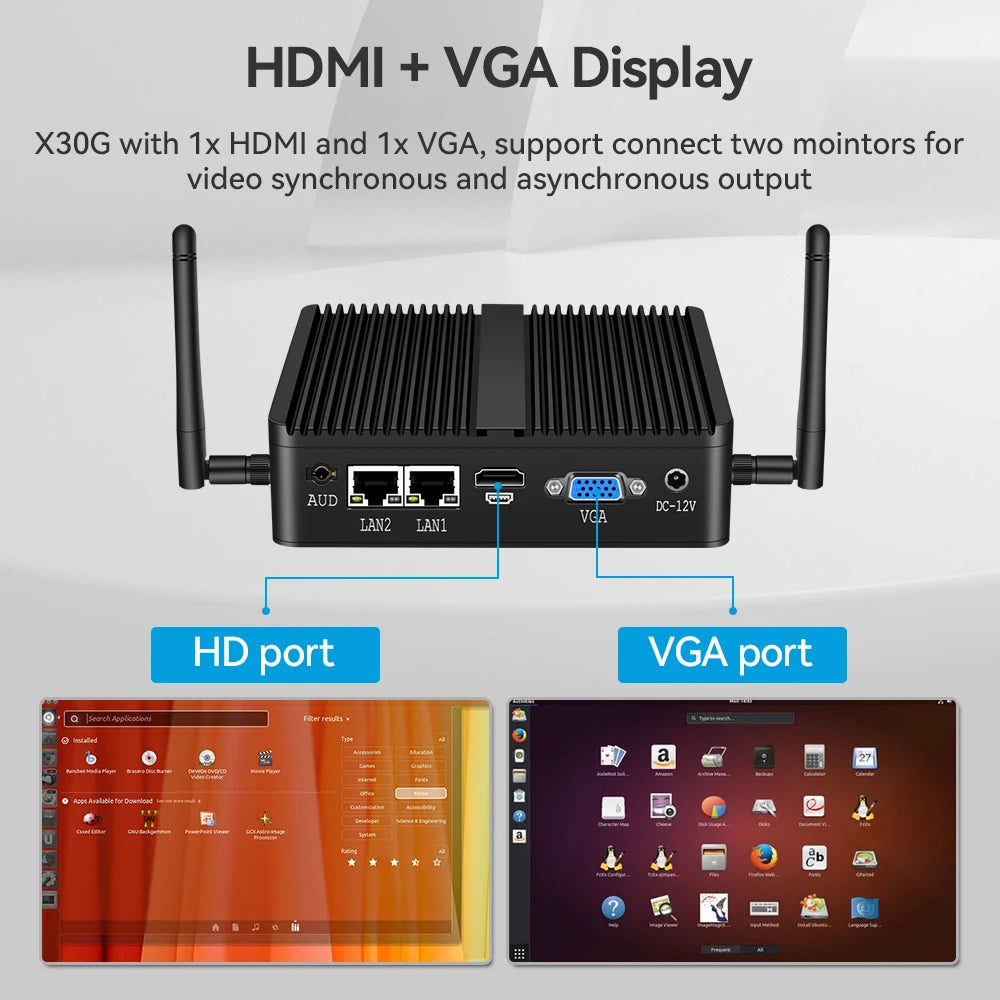

1x VGA, 1x HDMI, supports dual monitors independently video output |
COM Ports |

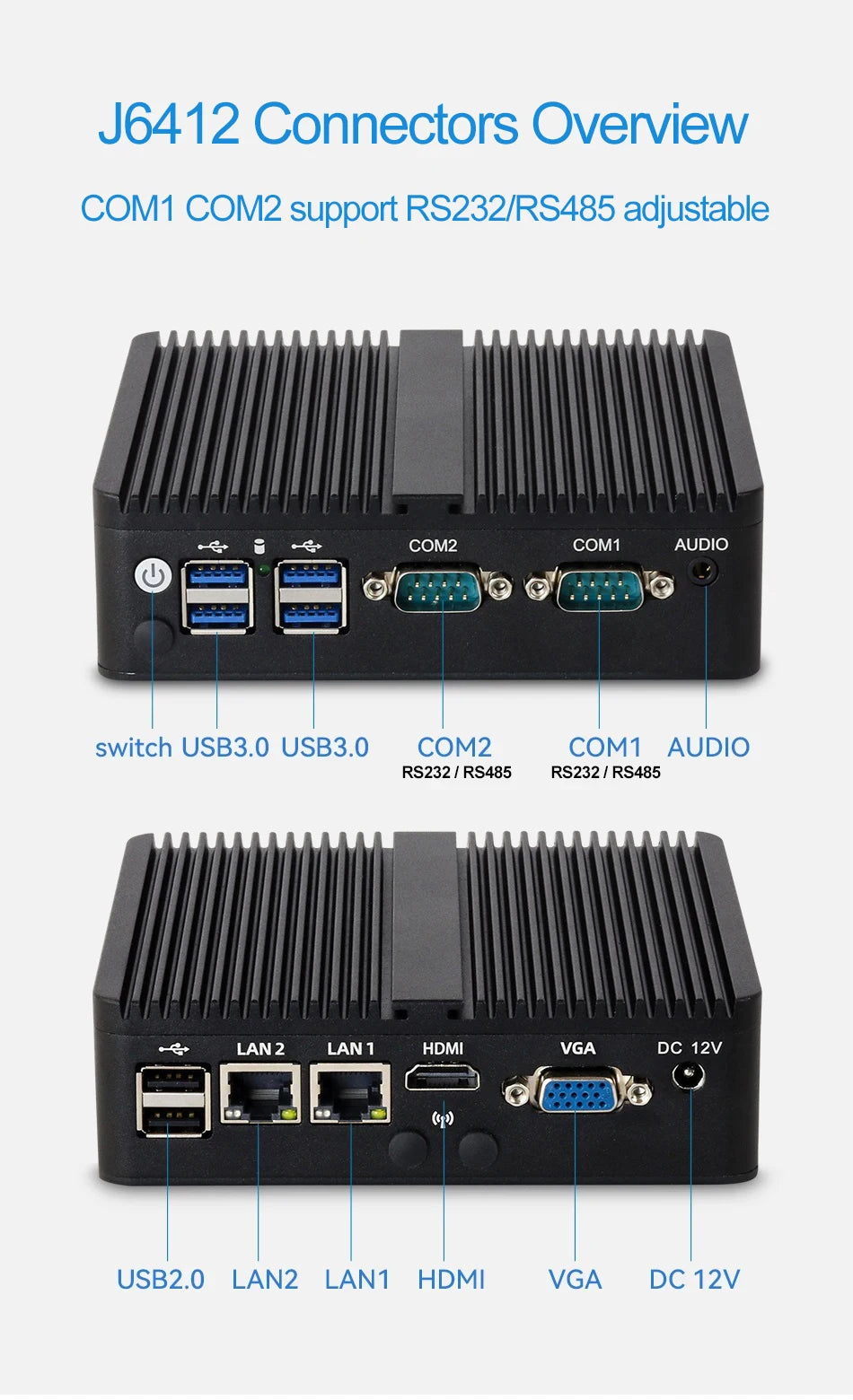

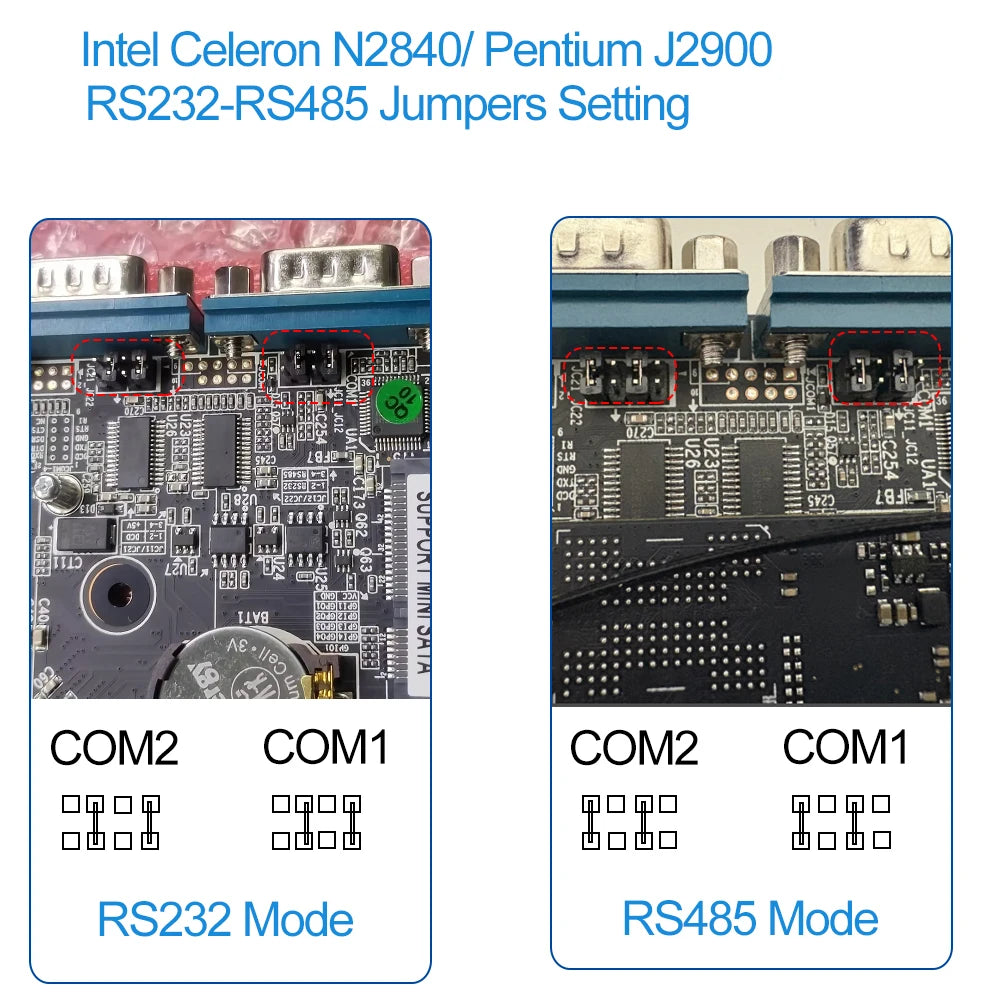

J6412/J2900/N2840 : 2x RS-232/RS-485, jumper free setting Other CPUs : 2x RS-232 |
Audio Ports |
Realtek RTL662/897 HD Audio, 3.5mm combo audio jack Support MIC in, Line out |
Construction |
Fanless passive cooling |
Case Materials |
Aluminum Case |
Dimension |
135x124x40mm |
Netweight |
1.0Kg |
Storage Temperature |
﹣20℃to +60℃ |
Operating Temperature |
﹣20℃to +60℃ |
RH |
5%~90% @30℃, Non-condensing |
Working Voltage |
DC12V-3A/5A (customize working voltage please contct us) |

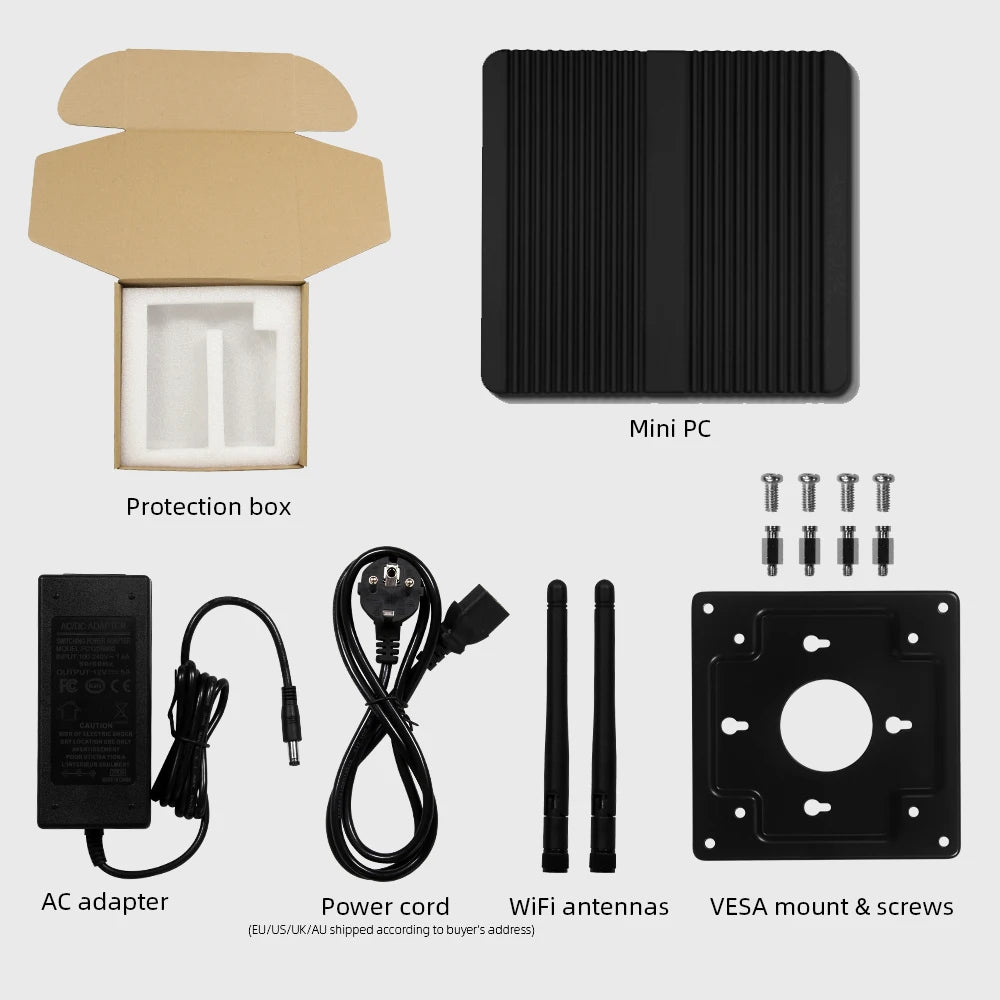

Package List |
1x Mini PC X30G |
